Pressure reducing valves Goetze682
  • Pressure reducing valves Goetze682

Pressure reducing valves

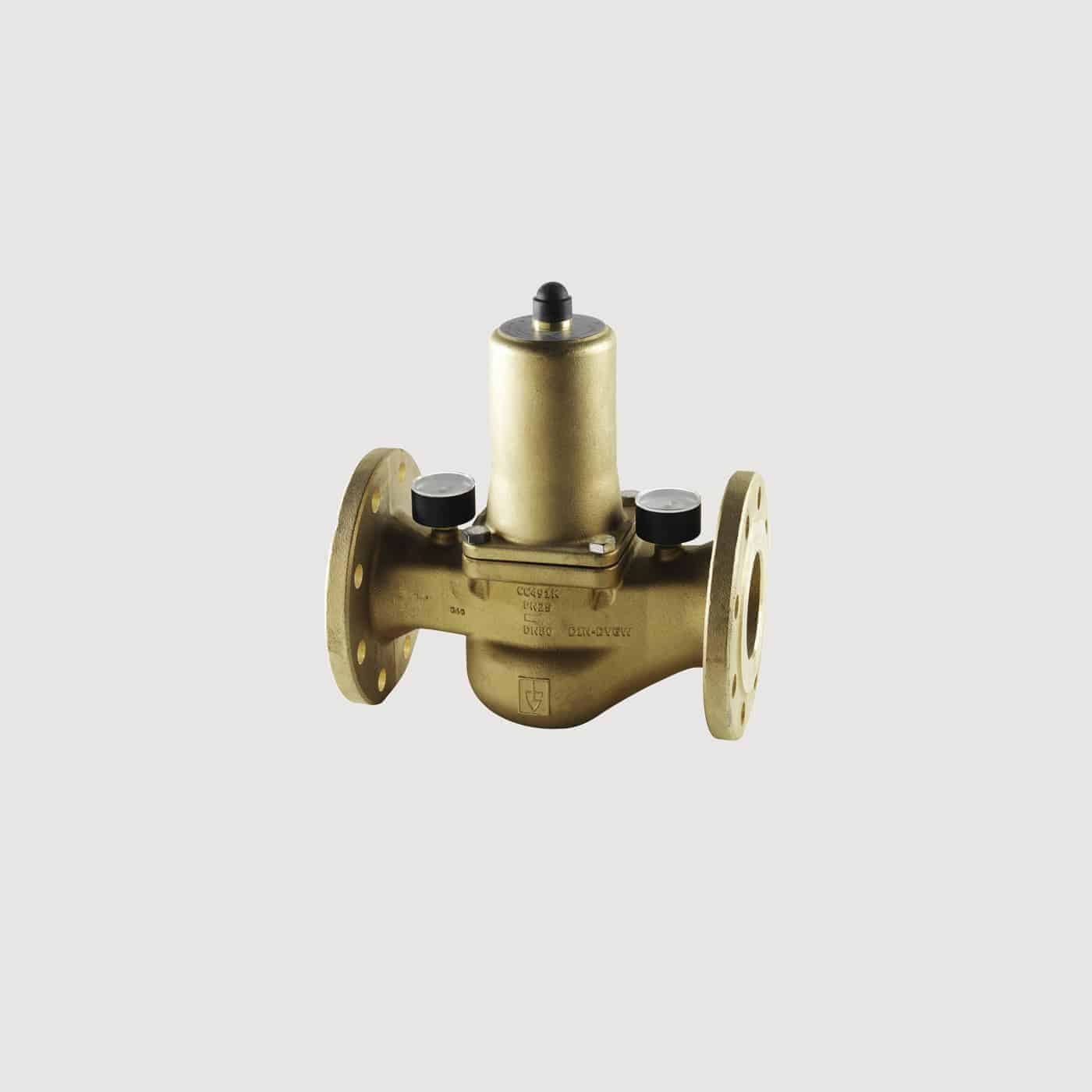

Goetze 681mGFO / Goetze 682mGFO

Goetze 681mGFO and Goetze 682mGFO pressure reducing valves are suitable for water, air and gases. The nest is made of red metal. Maximum inlet pressure is 25 bar and maximum temperature is +95 C.

  • Adjustment ranges: 0,5-2 bar; 1-8 bar; 5-15 bar
  • Sizes (681): 1/2″ – 2″
  • Sizes (682): DN20 – DN100

技术数据

Models

Goetze 681mGFO, Goetze 682mGFO
Material

Red brass
Liquid temperature range

max. +95 C
应用

Air, Gases, Water
Adjustment ranges

0,5-2 bar; 1-8 bar; 5-15 bar
Inlet pressure

max. 25 bar
Connection sizes

(681): ½” – 2” , (682): DN20 – DN100
